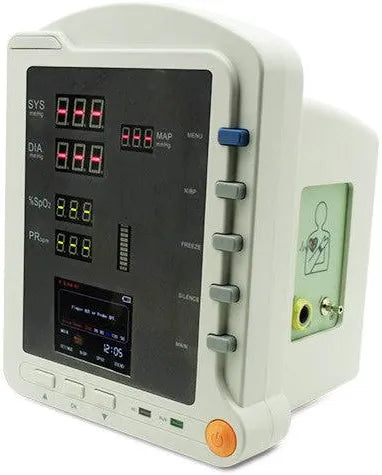

CMS5100 Patient Monitor

CMS5100 Patient Monitor – Advanced Vital Signs Monitoring for Healthcare Professionals

The CMS5100 Patient Monitor combines cutting-edge technology with an intuitive interface to provide precise, real-time monitoring of patient vital signs. Designed for medical professionals, it delivers accurate data analysis to support timely and effective patient care decisions.

Compact and reliable, the CMS5100 enhances clinical workflow and improves patient outcomes in hospitals, clinics, and other healthcare settings.

Key Features:

• Accurate monitoring of vital signs including ECG, SpO₂, NIBP, RESP, and temperature

• User-friendly touchscreen interface for quick setup and operation

• Real-time data display with waveform visualization and alarms

• Compact, durable design suited for bedside and transport use

• Multi-parameter monitoring with customizable settings

• Supports improved patient management and care outcomes

Technical Specifications:

• Display: 12.1-inch color TFT touchscreen, 800×600 resolution

• ECG: 3/5 leads, frequency response 0.5–40 Hz

• SpO₂: Dual wavelength, measuring range 0–100%, accuracy ±2%

• NIBP: Oscillometric measurement, range 0–285 mmHg, accuracy ±3 mmHg

• Respiration: Derived from ECG or impedance pneumography

• Temperature: Dual channel, range 0–50°C, accuracy ±0.1°C

• Alarm: Visual and audible alarms with adjustable limits

• Power: Rechargeable battery with approx. 3 hours of operation

• Dimensions: Approx. 380 × 310 × 100 mm

• Weight: Approx. 3.5 kg

• Connectivity: USB and optional wireless data transmission

• Compliance: Meets IEC 60601-1 medical electrical equipment safety standards

Equip your facility with the CMS5100 Patient Monitor for dependable, expert-level patient monitoring.
