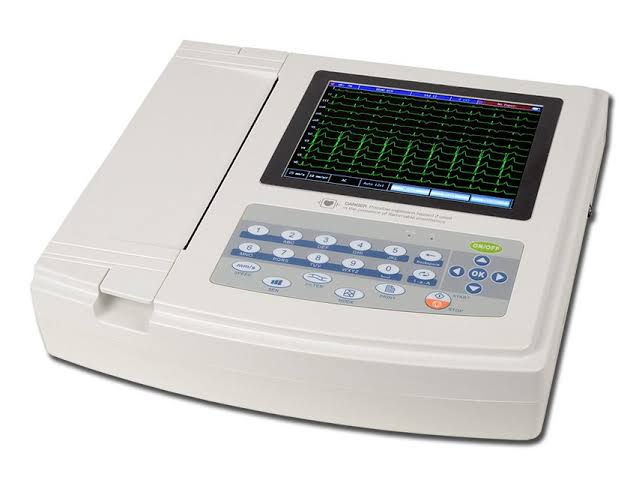

Contec ECG1200G Electrocardiograph

Contec ECG1200G Electrocardiograph

The Contec ECG1200G Electrocardiograph is a high-precision medical device designed to accurately measure and record the heart’s electrical activity. Utilizing advanced technology, it delivers reliable and clear ECG readings, supporting healthcare professionals in diagnosing and monitoring cardiac conditions effectively.

With user-friendly operation and detailed waveform display, the ECG1200G enhances clinical decision-making through accurate and timely data. Ideal for hospitals, clinics, and diagnostic centers seeking dependable cardiac assessment tools.

Key Features:

• Accurate 12-lead ECG recording with clear waveform display

• Advanced signal processing for precise cardiac data

• Easy-to-use interface for efficient operation

• Suitable for a wide range of clinical applications

• Supports effective diagnosis and patient monitoring

Ensure accurate cardiac care with the trusted Contec ECG1200G Electrocardiograph.

Technical Specifications:

• ECG Leads: 12-lead standard ECG measurement

• Display: High-resolution waveform display with real-time visualization

• Sampling Rate: 1000 samples per second per channel

• Frequency Response: 0.05 Hz to 150 Hz

• Input Impedance: ≥ 10 MΩ

• A/D Converter: 16-bit resolution

• Output: USB interface for data transfer and printer connection

• Recording Speed: 5, 10, 25, 50 mm/s selectable

• Paper Width: Standard ECG thermal paper, 210 mm width

• Power Supply: Rechargeable lithium battery and AC adapter

• Dimensions: Approx. 360 mm × 320 mm × 90 mm

• Weight: Approx. 3.5 kg

• Operating Temperature: 10°C to 40°C

• Storage Temperature: -20°C to 55°C

• Certifications: CE, ISO
