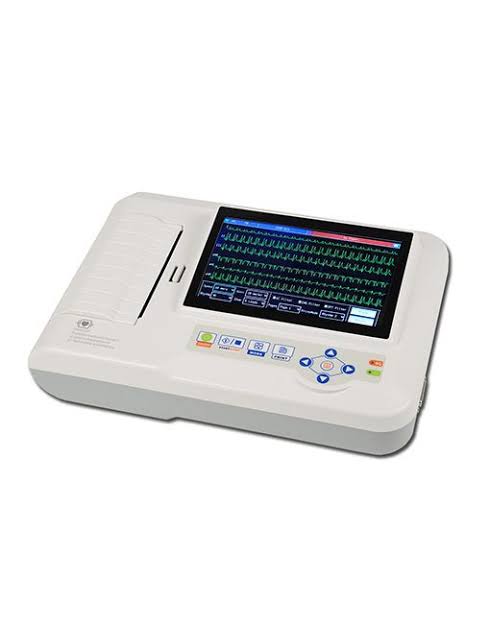

Contec ECG600G Electrocardiograph

Contec ECG600G Electrocardiograph

As a leading industry expert device, the Contec ECG600G Electrocardiograph delivers reliable and precise ECG monitoring to support optimal patient care. Equipped with advanced technology, it offers accurate measurements and detailed cardiac insights essential for effective diagnosis and treatment.

Trusted for its objective and consistent performance, the ECG600G is ideal for use in hospitals, clinics, and diagnostic centers, providing healthcare professionals with dependable data for confident decision-making.

Technical Specifications:

• ECG Leads: Standard 12-lead ECG configuration

• Display: Real-time waveform visualization

• Sampling Rate: 1000 samples/sec per channel

• Frequency Response: 0.05 Hz – 150 Hz

• Input Impedance: ≥ 10 MΩ

• A/D Conversion: 16-bit resolution

• Recording Speeds: 5, 10, 25, and 50 mm/s

• Output Options: USB interface for data export and printer connectivity

• Power Supply: Rechargeable battery with AC adapter

• Dimensions: Approximately 360 mm × 300 mm × 90 mm

• Weight: Approx. 3.5 kg

• Operating Temperature: 10°C to 40°C

• Storage Temperature: -20°C to 55°C

• Certifications: CE, ISO
