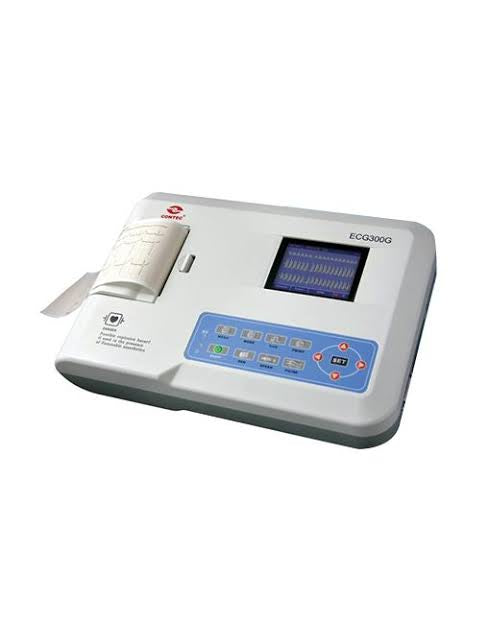

Contec ECG300G Electrocardiograph

Contec ECG300G Electrocardiograph

The Contec ECG300G Electrocardiograph offers advanced real-time cardiac monitoring and precise data analysis for healthcare professionals. Designed for accuracy and reliability, this compact device supports quick diagnosis and efficient patient care in clinical and mobile settings. Its lightweight and portable design make it ideal for use in hospitals, clinics, and fieldwork.

Technical Specifications:

• ECG Leads: 12-lead standard ECG

• Display: Real-time waveform monitoring

• Sampling Rate: 1000 samples/second per channel

• Frequency Response: 0.05 Hz to 150 Hz

• Input Impedance: ≥ 10 MΩ

• A/D Converter: 16-bit resolution

• Data Output: USB interface for data transfer and printer connection

• Recording Speed: Selectable 5, 10, 25, 50 mm/s

• Paper Width: Standard ECG thermal paper (210 mm)

• Power: Rechargeable battery and AC adapter

• Dimensions: Approx. 335 mm × 290 mm × 90 mm

• Weight: Approx. 3.2 kg

• Operating Temperature: 10°C to 40°C

• Storage Temperature: -20°C to 55°C

• Certifications: CE, ISO
